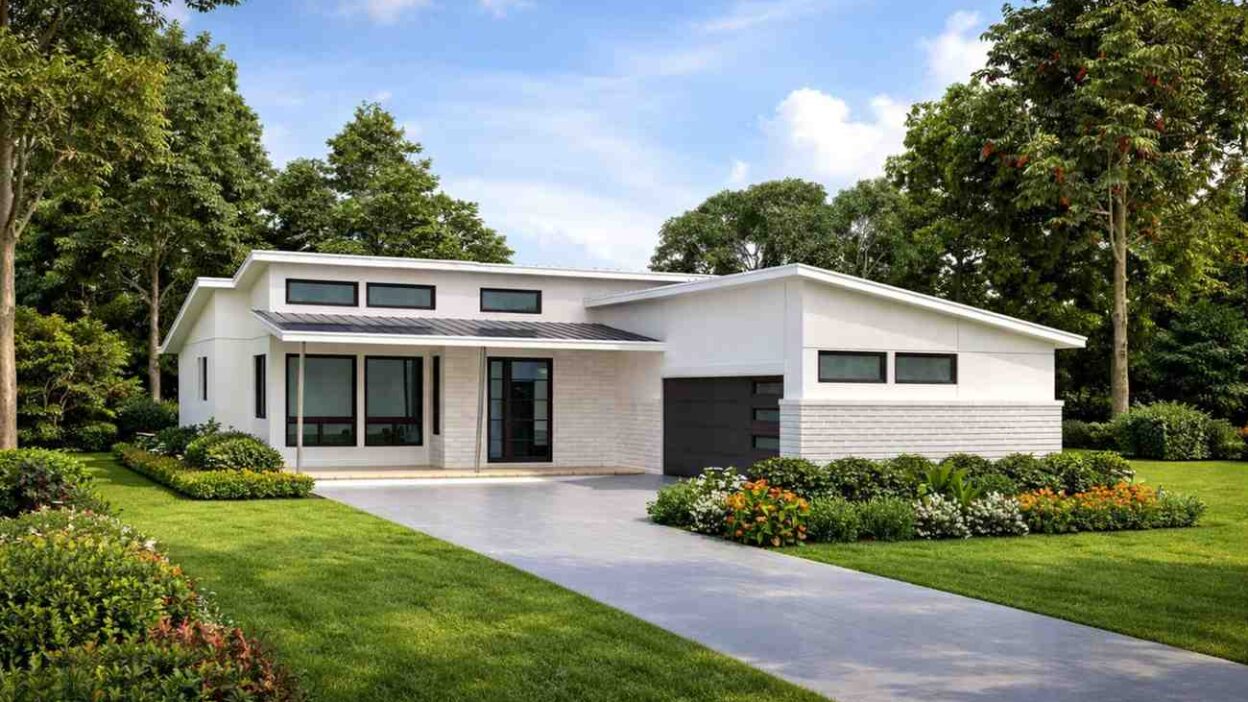

This modern ranch-style home design combines simplicity, elegance, and highly functional living spaces, all on a single level. Designed for comfort and seamless movement, this 3 BHK layout emphasizes openness while maintaining privacy where it matters most.
With a total built-up area of approximately 3,528 sq ft (derived from the overall 49’ × 72’ footprint), the house offers generous room sizes, a central family space, and strong indoor-outdoor connectivity through a covered patio.
Whether you’re planning a family home or a modern suburban residence, this layout delivers both practicality and aesthetic appeal, giving the perfect ambiance of a dream home.
Key Highlights:
- Total Area: 3,528 sq ft
- Stories: 1 (Single-story Ranch)
- Bedrooms: 3
- Bathrooms: 2 Full + 1 Powder Room
- Kitchen: 1 (Open layout with island)
- Living Area: Large central family room
- Garage: 2-car garage

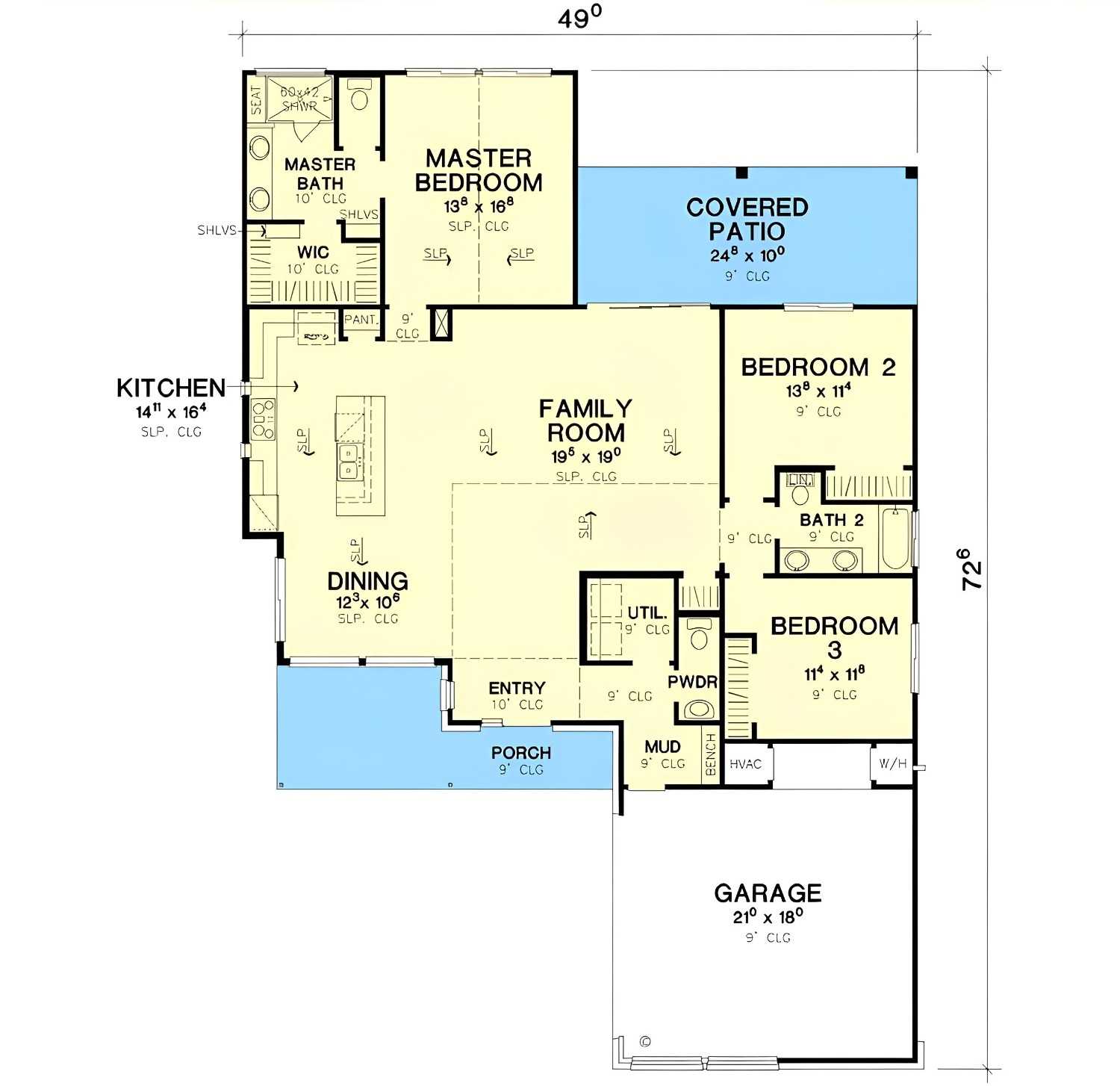

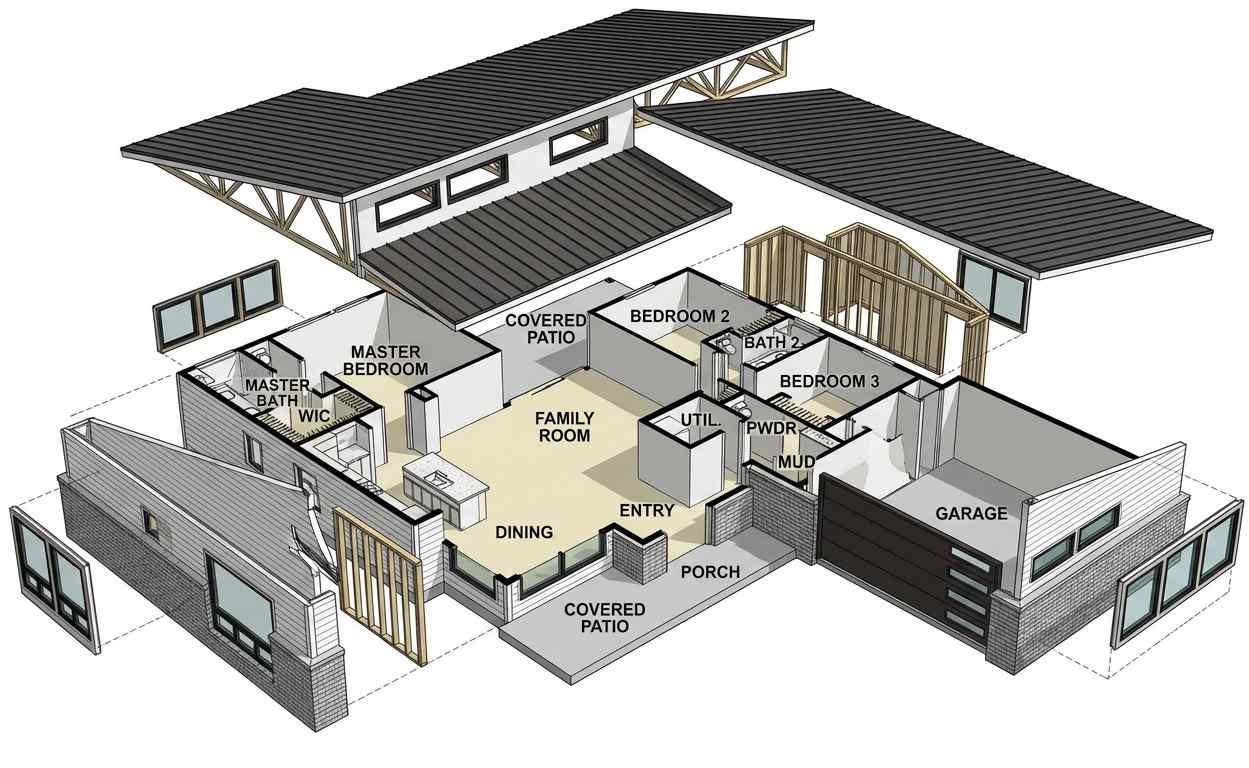

REVERSE-ENGINEERED BLUEPRINT ANALYSIS
The layout is intelligently structured around a central family room (19’6” × 19’), which acts as the heart of the home. This centralization ensures smooth circulation to all major zones.
Flow & Spatial Logic:
- The kitchen → dining → family room alignment creates a continuous open-plan environment.
- The covered patio extends directly from the family room, reinforcing indoor-outdoor living.
- The master suite is isolated on the left wing, ensuring privacy.
- Bedrooms 2 and 3 are grouped on the right side with a shared bathroom—ideal for children or guests.
Functional Zoning:
- Public Zone: Entry, dining, kitchen, family room
- Private Zone: Bedrooms and bathrooms
- Utility Zone: Mudroom, pantry, utility, garage access
This zoning enhances usability while minimizing unnecessary circulation.
ELEVATIONS AND EXTERIOR VIEWS

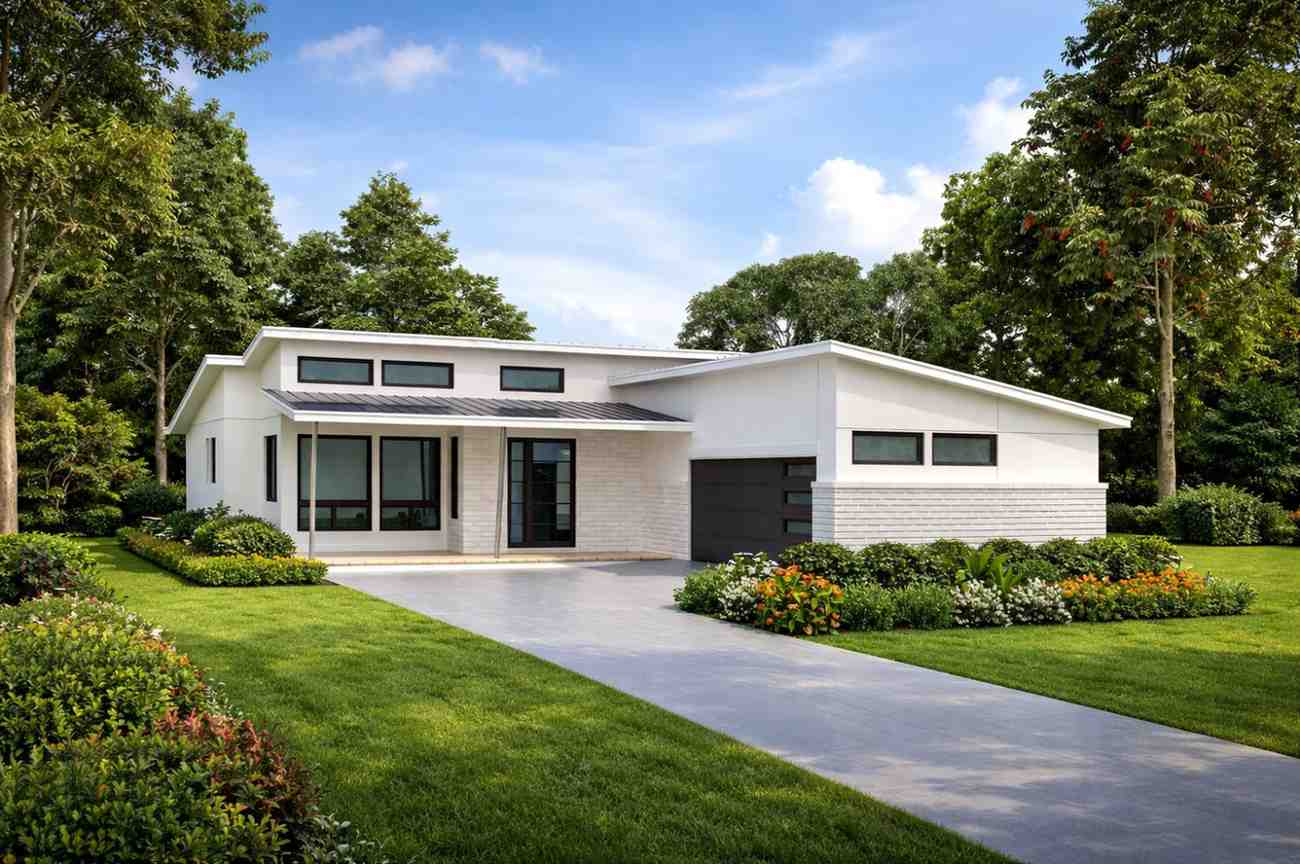

Front Elevation
The front elevation showcases a clean modern ranch aesthetic with horizontal lines, low-pitched rooflines, and a balanced façade. Large windows enhance natural light while maintaining privacy.

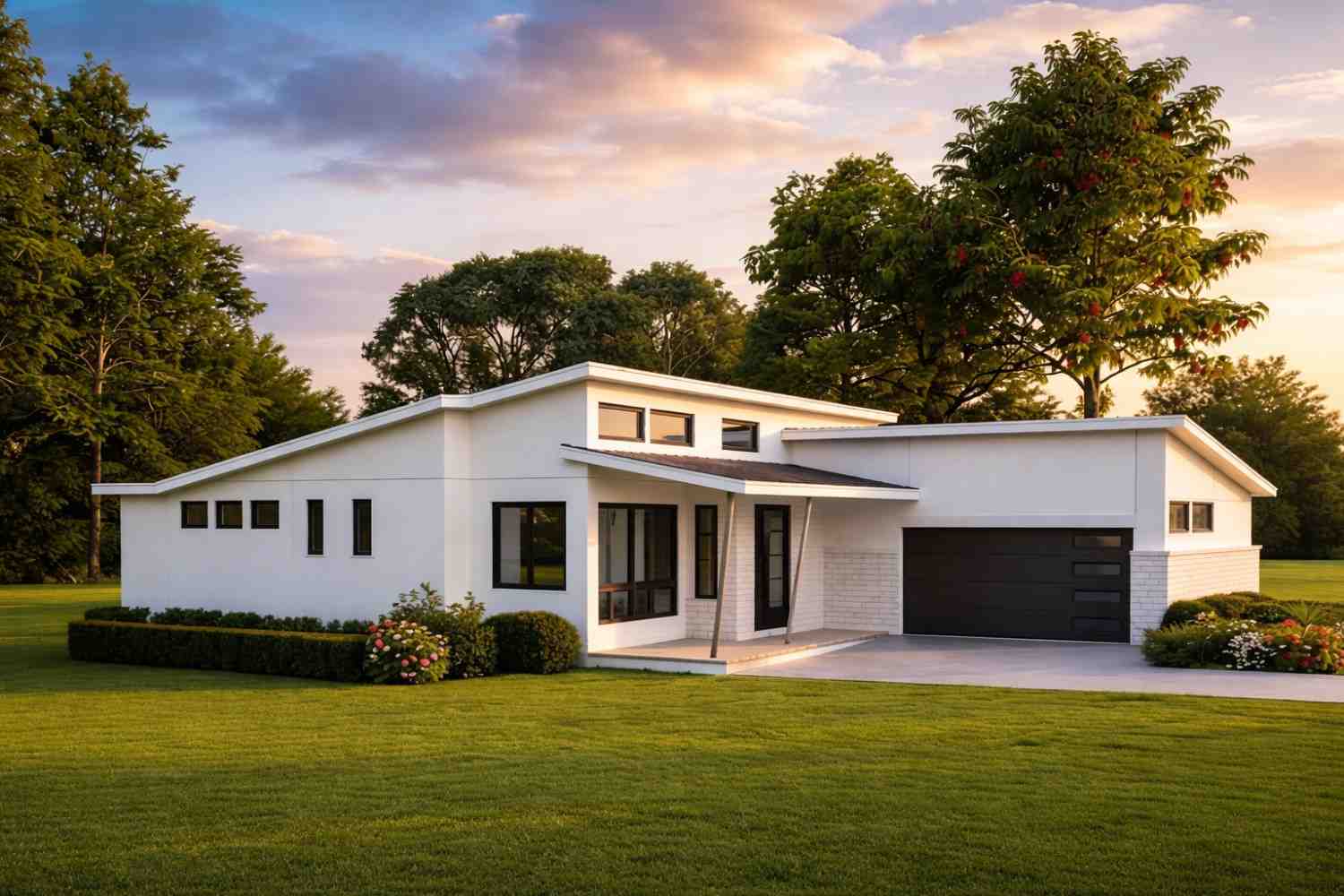

Left Side Elevation
The left side highlights the master suite volume, with subtle roof transitions and minimal openings for privacy.

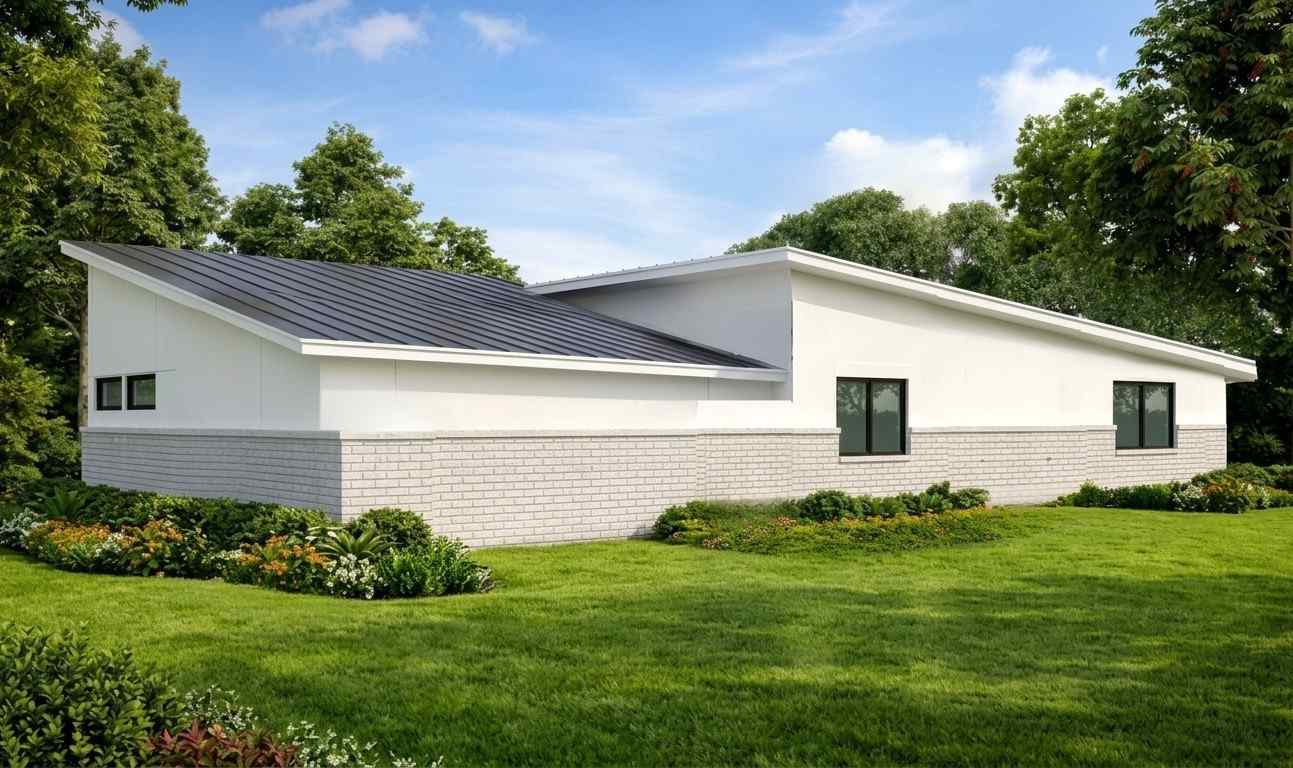

Right Side Elevation
This side reflects the secondary bedrooms and garage massing, creating a functional yet visually balanced exterior.

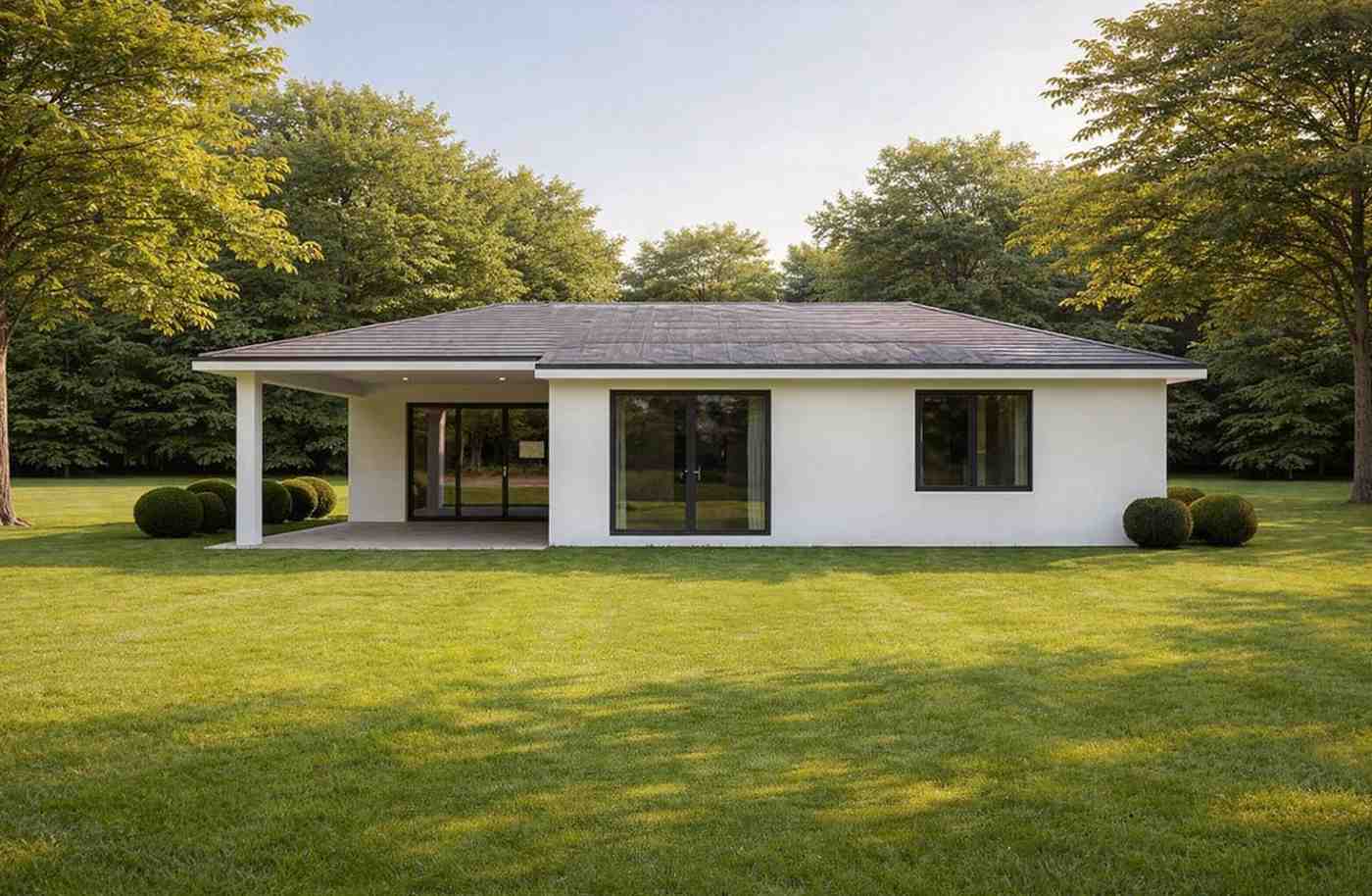

Rear Elevation
The rear is defined by the covered patio, offering a strong indoor-outdoor connection. Large openings from the family room enhance usability and light.

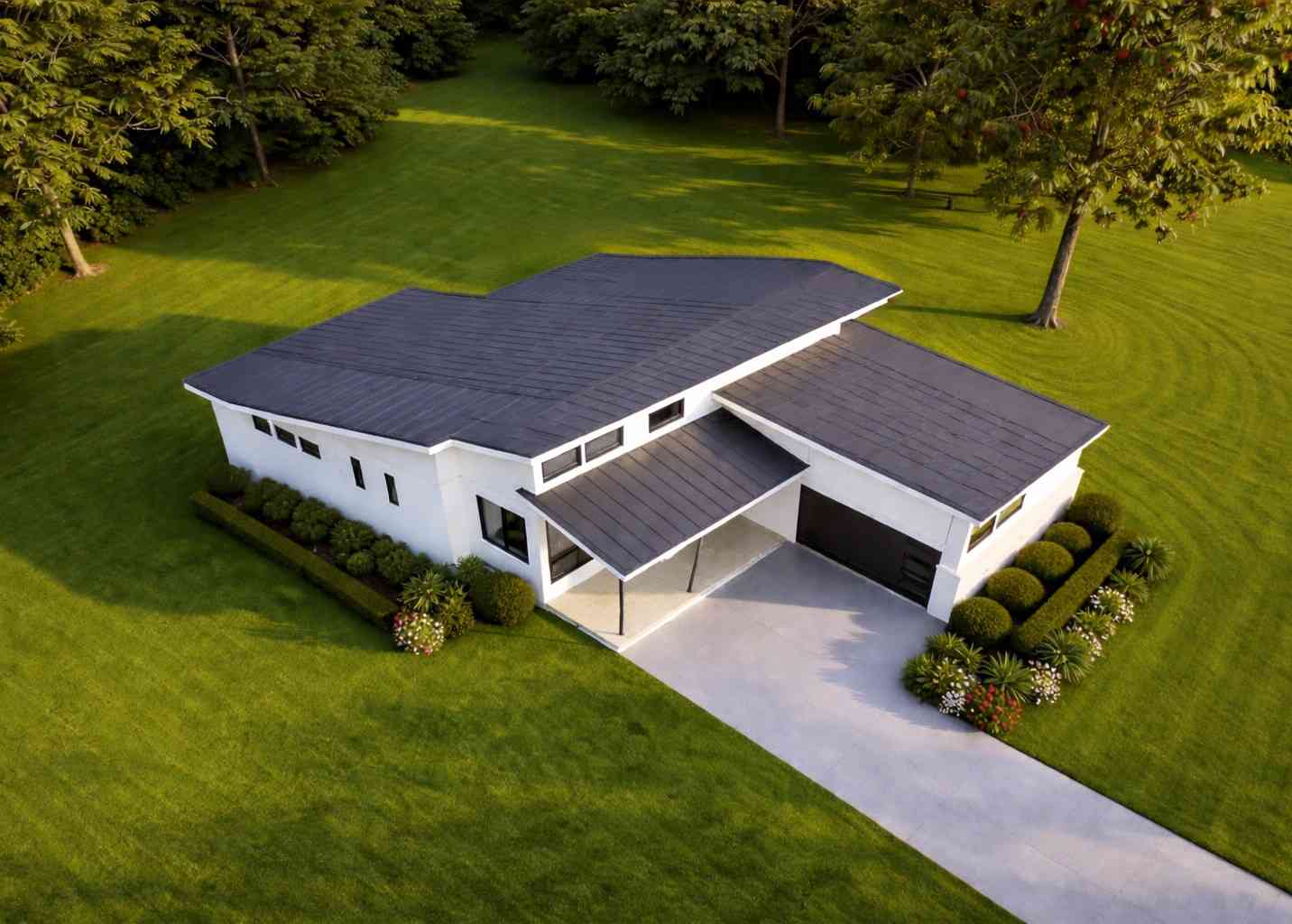

Top View (Aerial Perspective)
From above, the home presents a rectangular footprint (49’ × 72’) with clear zoning, garage at front-right, living core in center, and bedrooms distributed on both sides.
WHY CHOOSE THIS 3 BHK MODERN RANCH?
This house is ideal for:
- Families seeking single-level living
- Homeowners who value open layouts + privacy balance
- Suburban or semi-rural plots with wider frontage
Benefits:
- No stairs → future-proof design
- Efficient circulation
- Strong indoor-outdoor lifestyle
- Clear separation of private and shared spaces

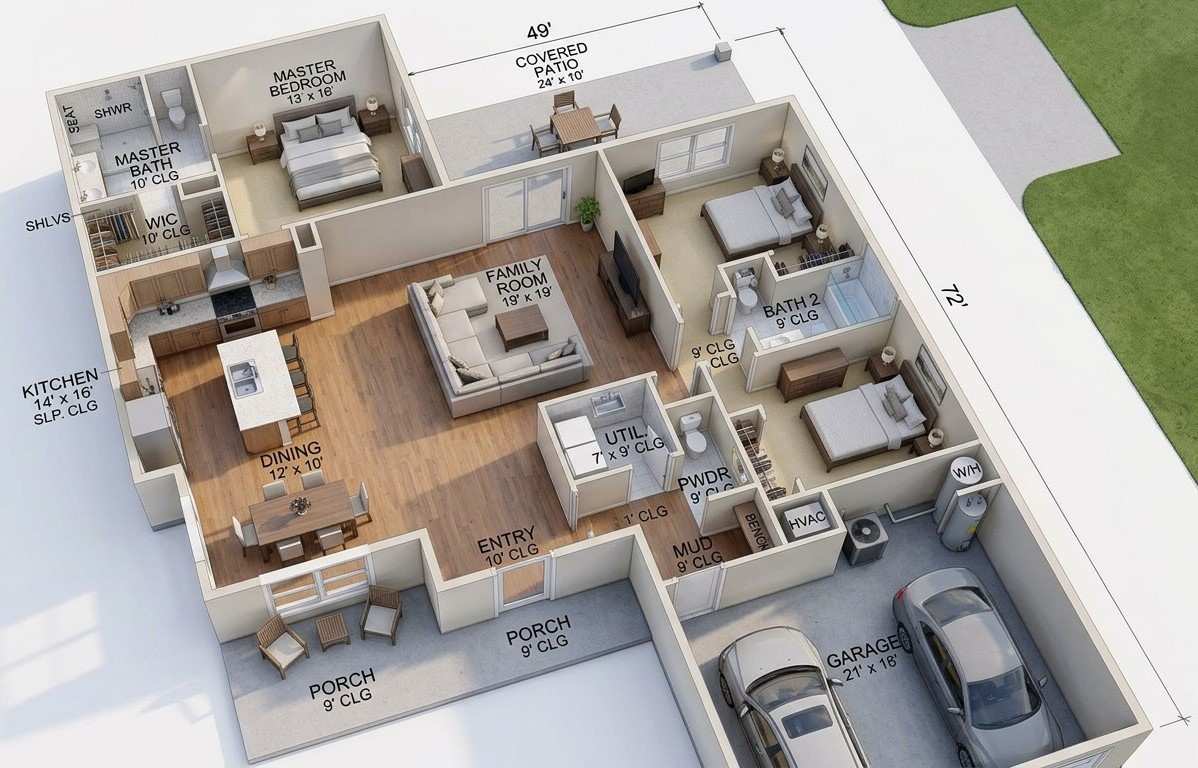

DETAILED FLOOR PLAN BREAKDOWN
| Room | Dimensions | Description |
|---|---|---|
| Master Bedroom | 13’8” × 16’8” | Spacious private suite with direct bath access |
| Master Bath | ~10’ ceiling | Includes tub, shower, dual sinks |
| Walk-in Closet (WIC) | ~10’ ceiling | Large storage with shelving |
| Kitchen | 14’ × 16’4” | Open kitchen with island and workflow efficiency |
| Dining | 12’ × 10’6” | Connected to kitchen and family room |
| Family Room | 19’6” × 19’ | Central living space with patio access |
| Bedroom 2 | 13’8” × 11’ | Comfortable secondary bedroom |
| Bedroom 3 | 11’4” × 11’8” | Compact yet functional bedroom |
| Bath 2 | ~9’ ceiling | Shared bathroom for bedrooms |
| Utility Room | ~9’ ceiling | Laundry and storage |
| Powder Room | ~9’ ceiling | Guest convenience |
| Mudroom | ~9’ ceiling | Transition space from garage |
| Pantry | Small | Kitchen storage |
| Covered Patio | 24’8” × 10’ | Outdoor seating/entertainment |
| Porch | ~9’ ceiling | Entry transition space |
| Garage | 21’ × 18’ | 2-car parking with storage |
| HVAC / W-H | Utility space | Mechanical systems |
APPROXIMATE CONSTRUCTION COST IN THE USA (LOCATION-BASED)
Construction costs vary widely across the U.S. due to labor rates, materials, and regional demand. Construction costs can vary 1.5x to 2x depending on location.
WHY COSTS VARY:
- Labor availability
- Material pricing fluctuations
- Permit regulations
- Land conditions
- Climate requirements
Cost Breakdown (Based on 3,528 sq ft)
1. Affordable States (Texas, Oklahoma, Tennessee)
- $120–$150/sq ft
- Estimated Cost: $423,000 – $529,000
2. Mid-Range States (Florida, Pennsylvania, Arizona)
- $150–$200/sq ft
- Estimated Cost: $529,000 – $705,000
3. Expensive States (California, New York, Washington)
- $200–$300/sq ft
- Estimated Cost: $705,000 – $1,058,000
Cost Optimization Tips:
- Use standard material sizes
- Simplify roof geometry
- Choose local materials
- Phase interior upgrades
- Optimize HVAC and insulation early
KEY ARCHITECTURAL FEATURES
- Open Floor Plan: Seamless kitchen-dining-living integration
- Single-Level Living: Accessibility and convenience
- Natural Lighting: Large windows across all zones
- Covered Patio: Outdoor extension of living space
- Functional Garage Access: Mudroom transition improves cleanliness
- Efficient Zoning: Clear separation of public and private areas
FREQUENTLY ASKED QUESTIONS
1. What is the best feature of this house style?
The open-plan living area combined with private bedroom zoning.
2. Is 3,528 sq ft ideal for a 3 BHK home?
Yes, it offers spacious living without excessive unused space.
3. What are the pros and cons of an open layout?
Pros: Better light, interaction, flow
Cons: Less sound/privacy control
4. How long does construction take?
Typically 8–14 months, depending on location and complexity.
